OEM-900-WHSKR-xx
Whisker.io Engine™, Long Range Wireless
D6 Labs Whisker Engine
General Description
The Whisker.io Engine™ is a long-range, ultra-low power intelligent
RF module designed for battery powered IoT applications. Using the
new LoRa technology from Semtech, the module is capable of
communicating over very long distances: up to
16 kilometers
with
proper antenna elevation. The module can operate for up to 5 years
from a pair of common AA batteries. All data communications are
encrypted using 128-bit AES.
The module is available in surface and through-hole packages and is
FCC certified.
Applications
•
Automated meter reading
•
Oil and gas well monitoring
•
Freezer and cooler monitoring
•
Agriculture - soil moisture, etc
•
Building maintenance and management
•
General battery powered wireless IoT applications
•
Long range wireless serial bridge
Features
•
2.95 cm
x
2.36 cm
x
4.83 mm
– SMD
•
2.95 cm
x
2.36 cm
x
1.27 cm
– Thru-hole
•
1.8 - 3.5V operation
•
Current: Tx=120mA, RX=12mA
•
Link Budget: 135dB (1 mil LOS)
•
5 year battery life (2xAA, 5 minute sample rate)
•
2 analog in/digital in/digital out
•
I2C I/O expansion
◦
MMA8652 accelerometer
◦
SX1508 port I/O expander
◦
ADS1015 A/D converter
◦
Refer to user manual for complete list
•
Transparent serial mode
•
128 bit AES encryption
•
FCC modular certification
Pin-out

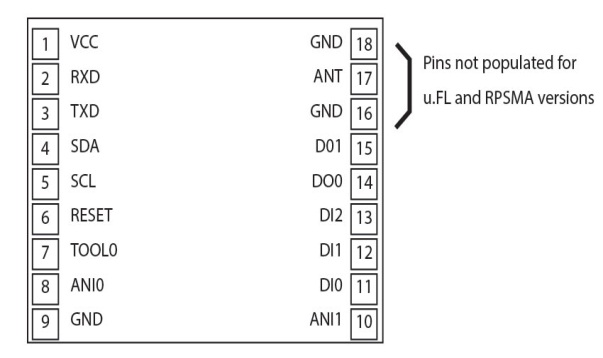

D6 Labs Whisker Pinout
Pin
Description
1
VCC: 2.4-3.6V DC
2
RXD: UART data receive
3
TXD: UART data transmit
4
SDA: I2C IO Expansion
5
SCL: I2C IO Expansion (Serial mode)
6
RESET: Programming line
7
TOOL0: Programming line
8
AIN0: Analog Input 0
9
GND
10
AIN1: Analog Input 1
11
DI0: Digital Input 0 (Wakeup input in battery mode)
12
DI1: Digital Input 1
13
DI2: Digital Input 2
14
DO0: Digital Output 0
15
DO1: Digital Output 1
16
GND
1
17
ANT
1
18
GND
1
1) These pins are not available on versions with a wire antenna or antenna
connector.They are only used when the antenna is to be connected on the
host PCB.
Wh
sker
o
TM
www.d6labs.com
Page 2
sales@d6labs.com
© Copyright 2026 Digital Six Laboratories, All Right Reserved
1-844-365-8647
Mechanical Drawing - Whisker.io Engine™, Long Range Wireless
D6 Labs Whisker Engine Mechanical
Electrical Specifications
Parameter
Minimum
Typical
Maximum
Units
Supply voltage
1.8
3
3.6
VDC
Supply current - Transmit mode-100 mW
125
mA
Supply current - Receive mode
13
μ
A
Average supply current - Battery mode
1
13
μ
A
Average supply current - Line power mode
13
mA
Link budget
132
139
dB
Demodulation SNR
-10
-12.5
20
dBm
Analog input voltage range
0
2.5
Volts
UART data rate
2400
115200
Baud
Unique MAC address length
32
bits
1) battery powered mode, 5 minute sample rate
Order Information
Part Number
Description
OEM-900-WHSKR-SE
Surface mount MHz module without uFL connector
OEM-900-WHSKR-SC
Surface mount MHz module with uFL connector
OEM-900-WHSKR-TE
Thru-hole MHz module without uFL connector
OEM-900-WHSKR-TC
Thru-hole MHz module with uFL connector
