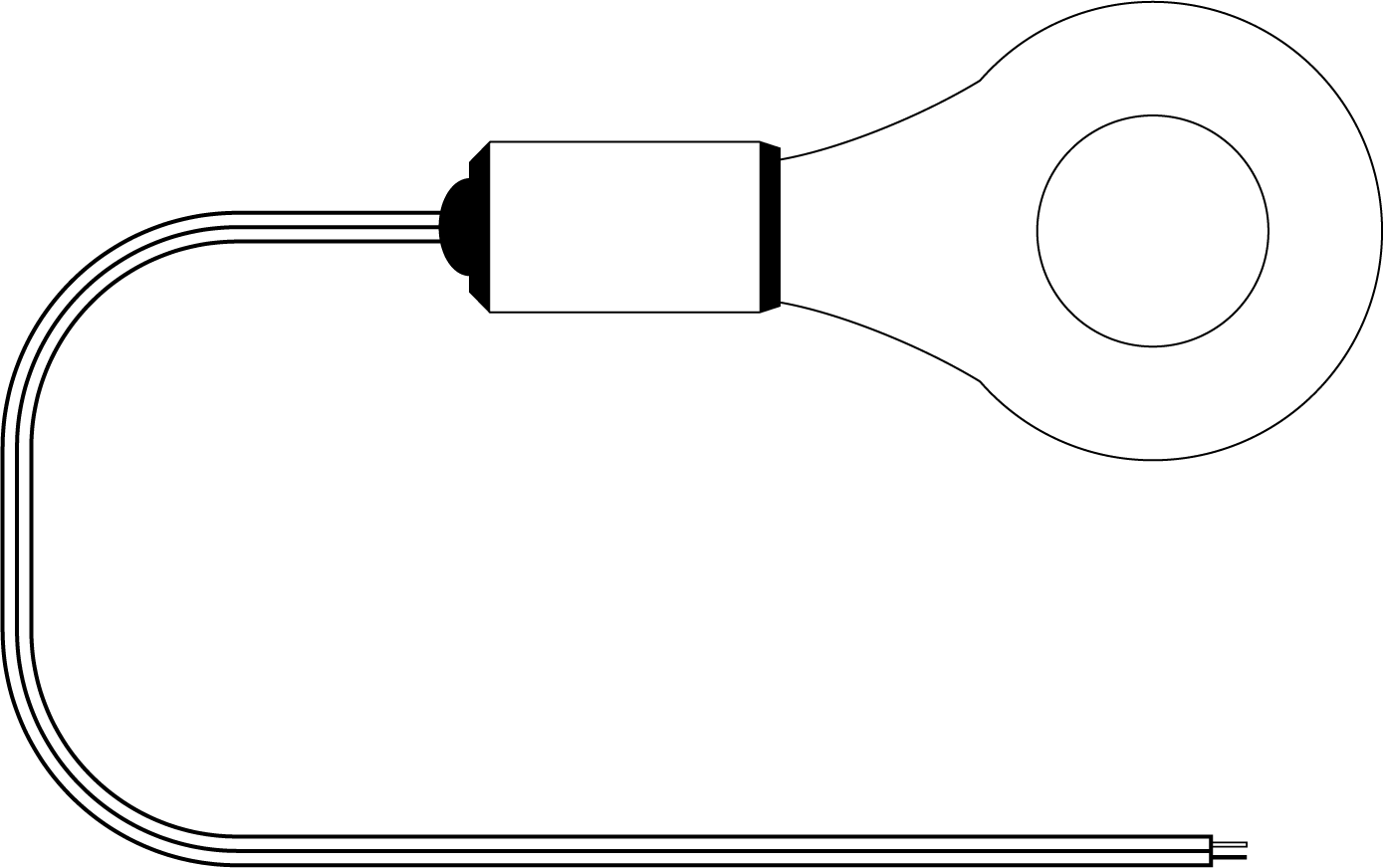

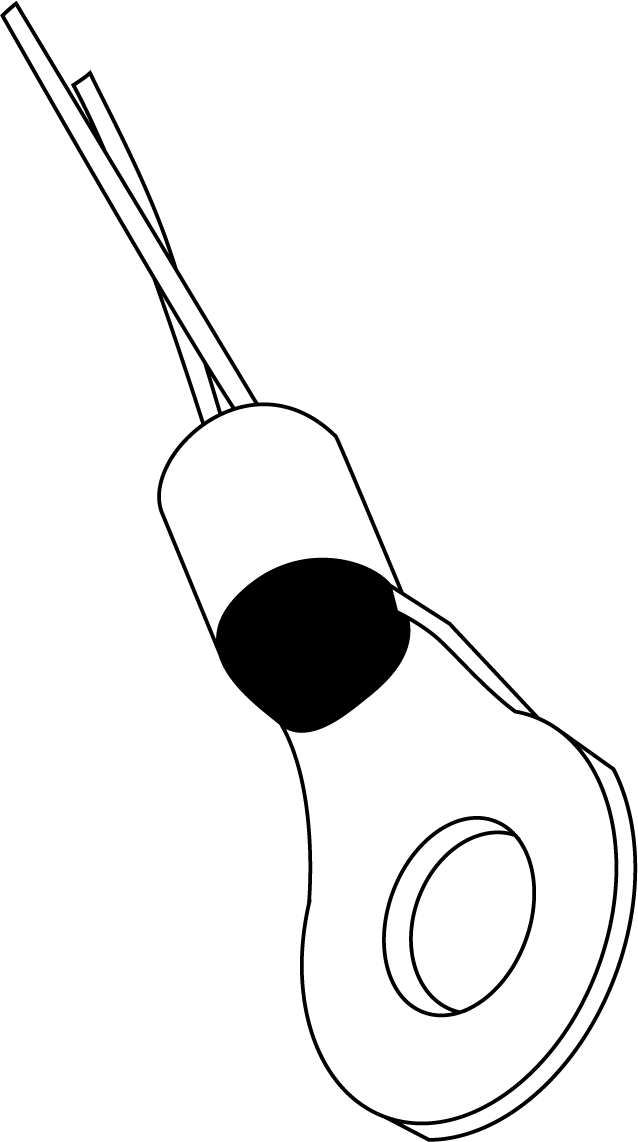

D6 Labs™Engineered IoT SolutionsWhskeroTMwww.d6labs.comPage 1sales@d6labs.com© Copyright 2026 Digital Six Laboratories, All Right Reserved1-844-365-8647WBP-TR-04-6IThermistor Temperature Sensor, Lug Mount, 6 Inch CableD6 Labs 10k-Therm-Lug DrawingGeneral DescriptionThis external sensor is designed to work with a Whisker.Block® that is configured with an external thermistor (TR) input. When properly mounted, this sensor can detect temperatures in the range of -40 to 185 degrees fahrenheit. This sensor is fastened to a piece of equipment that requires temperature monitoring from a secure point.The WBP-TR-02-xx is a 5 inch version of this probe, the WBP-TR-03-xx is designed to be mounted in HVAC ducts, and finally the WBP-TR-04-xx is a lug mounted probe that can be used on equipment such as motors.PowerPower for the sensor is provided by the Whisker.Block®.MountingThis sensor is .3125 inches in length and can be fastened to equipment via its .125 inch hole.Compatible Whisker.Blocks®Part NumberWB1-9-xx-TRNNNNNN-0000-xxWB1-9-xx-TRTRNNNN-0000-xxWB1-9-xx-DCTRNNNN-0000-xxWB1-9-xx-DCTRTRNN-0000-xxWB1-9-xx-DCTRTRNN-7000-xxWB1-9-xx-C1TRTRNN-0000-xxWB1-9-xx-C2TRTRNN-0000-xxWB1-9-xx-C3TRTRNN-0000-xxWB1-9-xx-C4TRTRNN-0000-xxWiringD6 Labs 10k-Therm-Lug DiagramRecommended Wiring:ConnectorPinSensor WireDescription11RedSensor power supply12 or 3Blue/BlackThermistor output
