CBL-M8MALE26AWG-3FT-01
Sensor Attachment Cable,
3 Foot
Cable

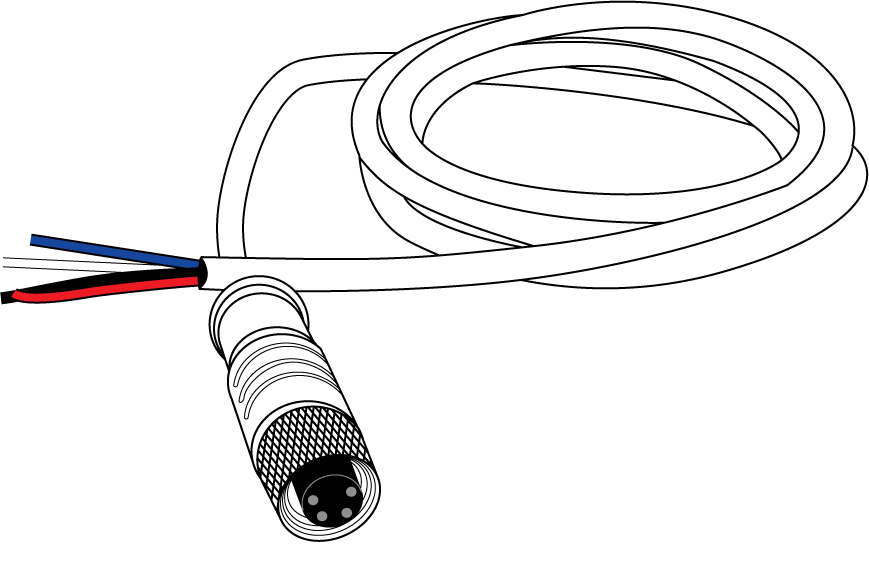

D6 Labs Sensor Cable Drawing
General Description
The Sensor Attachment Cable is installed on the Whisker.Block
®
to
provide a means to connect up to two (2) sensors to the
Whisker.Block
®
without having to wire the sensor(s) directly to the
Whisker.Block
®
circuit board connector. The total cable length from
the Whisker.Block
®
to the sensor is the length of the Sensor
Attachment Cable plus the length of the sensor cable.
Mounting
The Sensor Attachment Cable comes attached to the Whisker.Block
®
.
In some cases, the sensors must be connected to the Sensor
Attachment Cable using the wiring configuration shown on the
sensor data sheet.
Compatible Whisker.Blocks
®
This sensor attachement cable is compatible with all Whisker.Blocks
®
that have external channels.
D6 Labs Sensor Cable Diagram
