WSK-900-WBP-SC-1000-01
Sensor Cable / CO2 Sensor
General Description
This kit contains a CO2 sensor along with the necessary Sensor Attachment Cable for connection to the Whisker.Block
®
. The below listed components are
shipped attach to the listed Sensor Attachment Cable, as shown in the below diagram.
This bundle contains the following components:
Quantity
Part Number
Description
1
WBP-C0-01-3F
CO2 Sensor,
91.4 Centimeter
Cable
1
CBL-M8MALE26AWG-3FT-01
Sensor Attachment Cable,
91.4 Centimeter
Cable

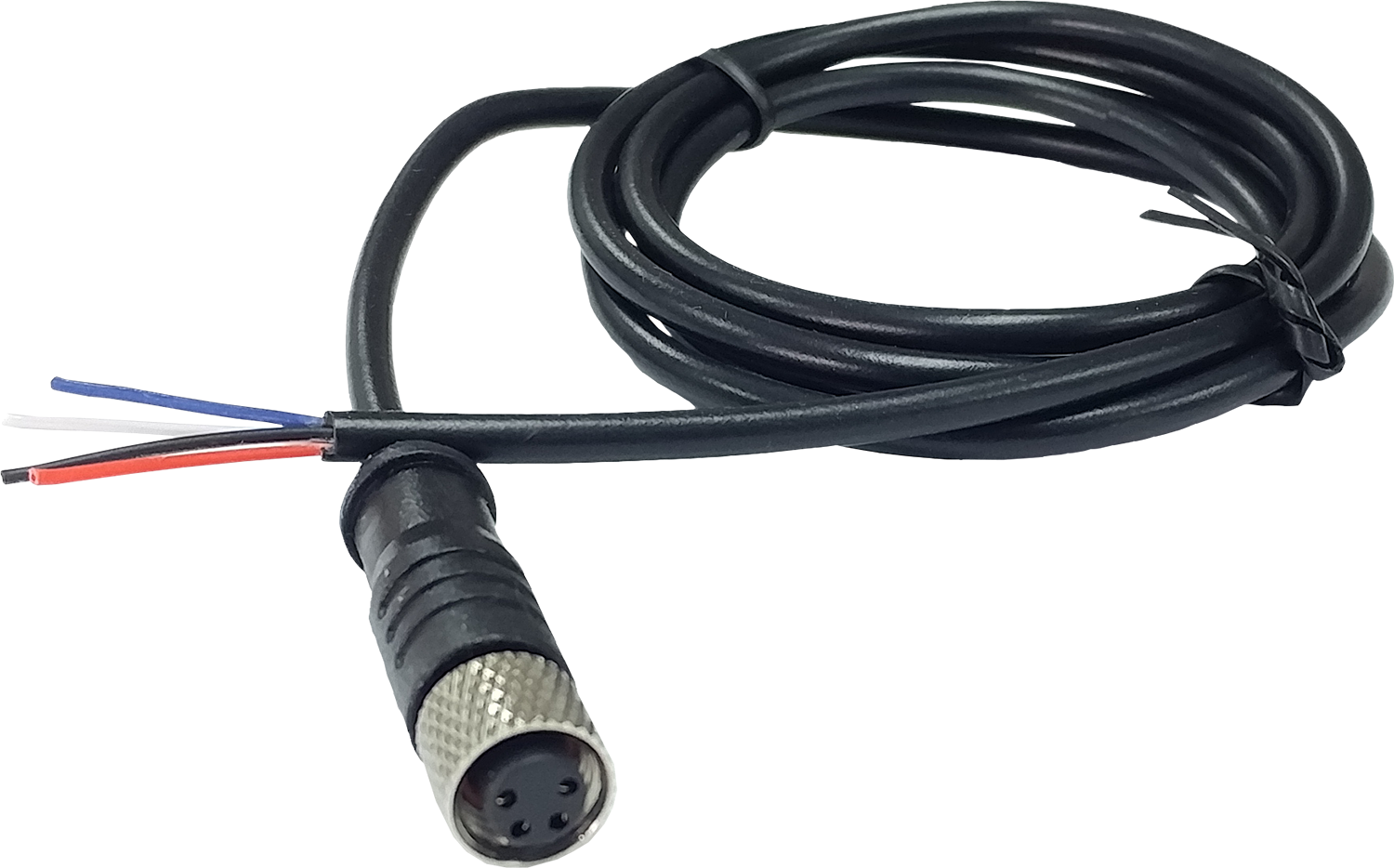

D6 Labs Sensor Cable Wire Drawing
Wiring Diagram
D6 Labs Cable Kit Wiring
