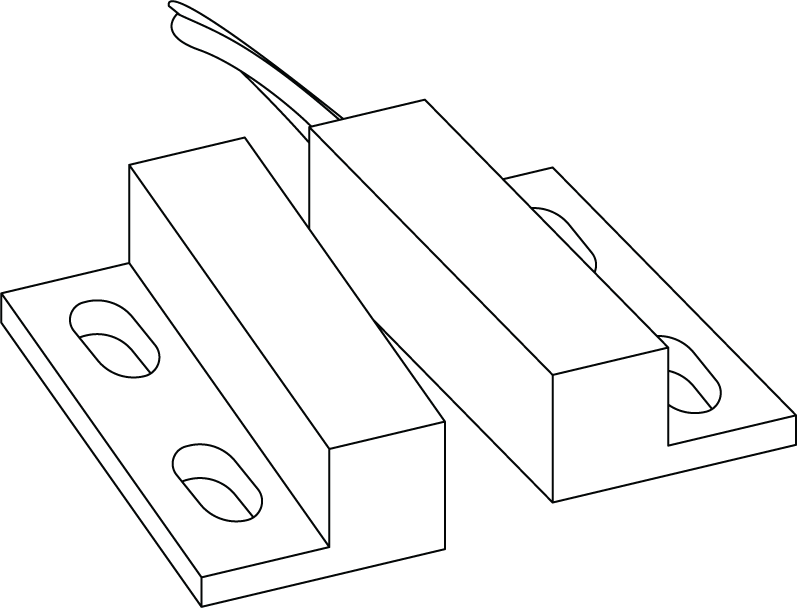

D6 Labs™Engineered IoT SolutionsWhskeroTMwww.d6labs.comPage 1sales@d6labs.com© Copyright 2026 Digital Six Laboratories, All Right Reserved1-844-365-8647WBP-DO-01-3FDoor Sensor, 3 Foot CableD6 Labs Magnetic-Switch DrawingGeneral DescriptionThis open/close dry-contact sensor can be connected to a Whisker.Block® with a dry contact input. The sensor is a normally open switch that closes in the presence of a magnetic field.There are multiple compatible Whisker.Block® products available that have a dry contact input. The part numbers of the compatible Whisker.Block® products are show to the right.Refer to the Whisker.Block® documentation for details on the various modes for reading the state of the sensor.PowerThis is a passive sensor that requires no external power. MountingThere are screw holes for mounting both the switch body and the associated magnet but they can also be mounted with double sided tape (not included). In a typical application the switch body is mounted to the door or window frame and the magnet is mounted on the door or window so that the magnet is closely aligned with the switch body when the door or window is closed.Compatible Whisker.Blocks®Part NumberWB1-9-xx-DCNNNNNN-0000-xxWB1-9-xx-DCDCNNNN-0000-xxWB1-9-xx-DCTRNNNN-0000-xxWB1-9-xx-DCTRTRNN-0000-xxWB1-9-xx-DCTRTRNN-7000-xxWB1-9-xx-DCA4NNNN-0000-xxWB1-9-xx-DCA4A4NN-0000-xxWB1-9-xx-DCDCA4A4-0000-xxWB1-9-xx-DCA5NNNN-0000-xxWB1-9-xx-DCA5A5NN-0000-xxWiringD6 Labs Magnetic-Switch DiagramRecommended Wiring:ConnectorPinSensor WireDescription12 or 3Blue/BlackSwitch Pole14WhiteGround Reference
